R-MSBP Bridge Plug (Mechanical Set)

R-MSBP Bridge Plug (Mechanical Set)

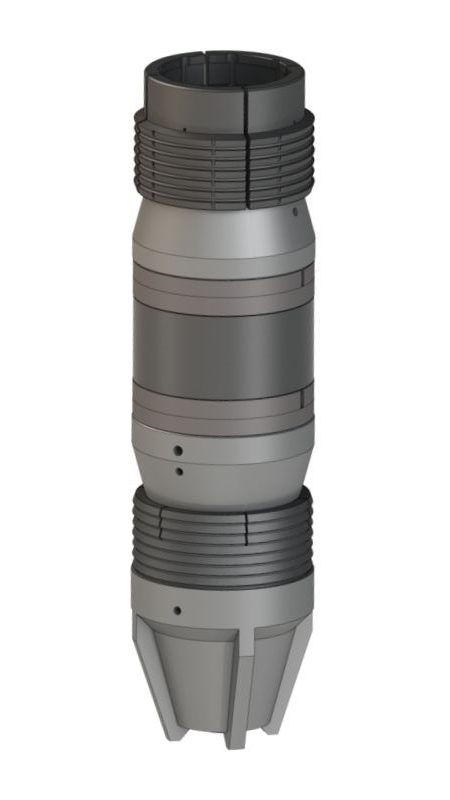

BR-MSBP cast iron Bridge Plug is a compact and economical unit engineered for fast running down hole on Mechanical Setting tool. This Bridge Plug is a fully drillable, high performance permanent TYPE suitable for zone abandonment or temporary suspension.

The Bridge Plug may be set mechanically by MST. Bridge Plug may be converted to Cement retainer by replacing Bottom and insert Collet.

Features
  • Cast iron drillable design.
  • Runs with Mechenical Setting Tool.
  • Converts to a Mechenical Set Cement Retainer.
  • Components rotationally locked for easy drill out.
  • Temperature rating to 400°Fahrenheit.
  • Differential pressure rating to 10,000 psi.
Kategori:

Deskripsi

Product Specifications

CASING Bridge Plug
O.D. (Inch) WEIGHT (LB/FT) MIN. I.D. (Inch) MAX. I.D. (Inch) MAX. O.D. (Inch) Part Number
4.500” 9.5-15.1 3.826 4.090 3.625 BR-MSBP-450
5.000” 11.5-18.0 4.276 4.560 4.000 BR-MSBP-500
5.500” 13.0-23.0 4.670 5.118 4.375 BR-MSBP-550
5.750” 14.0-25.2 4.890 5.290 4.750 BR-MSBP-575
6.625” 17.0-35.0 5.575 6.135 5.375 BR-MSBP-660
7.000” 17.0-35.0 6.004 6.538 5.688 BR-MSBP-700
7.000” 35.0-38.0 5.920 6.004 5.625 BR-MSBP-705
7.625” 20.0-39.0 6.625 7.125 6.375 BR-WPB760
8.625” 24.0-49.0 7.511 8.097 7.125 BR-MSBP-860
9.625” 29.3-61.1 8.375 9.063 8.250 BR-MSBP-960
10.750” 32.75-60.7 9.660 10.192 9.500 BR-MSBP-1075
11.750” 60.0-83.0 10.368 10.772 10.000 BR-MSBP-1175B
11.750” 38.0-60.0 10.772 11.150 10.500 BR-MSBP-1175A
13.375” 48.0-72.0 12.347 12.715 12.000 BR-MSBP-1330
