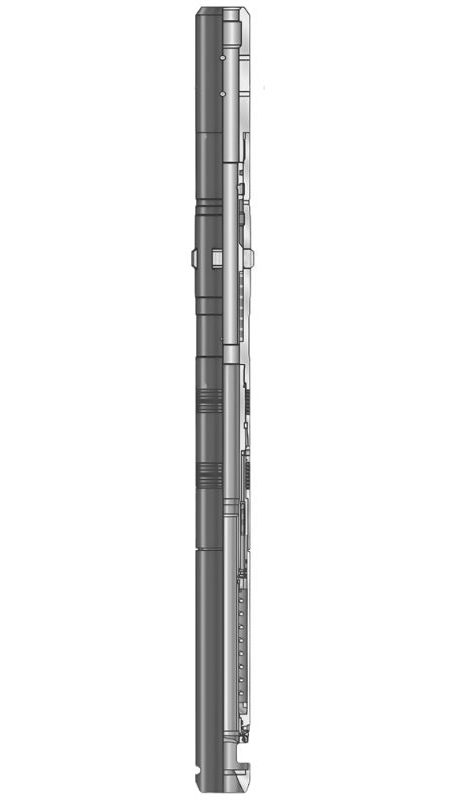

NIRVANA Wireline-Retrievable Safety Valve

NIRVANA Wireline-Retrievable Safety Valve

The NIRVANA Wireline Retrievable Surface Controlled Subsurface Safety Valve (WRSCSSV) is a Flapper Type Safety Valve and is available in 5,000 psi Working Pressure variants, is available in a self equalising configuration. The Standard Safety Valve Lock can be configured to accept any Manufacturer’s Lock.

Features:
  • The eccentric valve design configuration permits a large through bore.
  • The Chevron Packing can be totally replaced.
  • Minimised leak paths.
  • Robust constructions.
  • available with premium metallurgies and premium connections.
Kategori:

Deskripsi

Product Specification

Tubing Size(in.) Maximum OD(in.) Polished Bores(in.) Working Pressure(psi) Tensile Strength**(ib) Part Number
2-7/8″ 4.610 2.313 2.188 5,000 1,86,180 NIR-BR-270
3-1/2″ 5.175 2.813 2.750 5,000 3,02,760 NIR-BR-350
4-1/2″ 6.908 3.813 3.688 5,000 4,25,740 NIR-BR-450
5-1/2″ 7.686 4.563 4.250 5,000 6,02,970 NIR-BR-550

Note: Other sizes and connections are available upon request.
