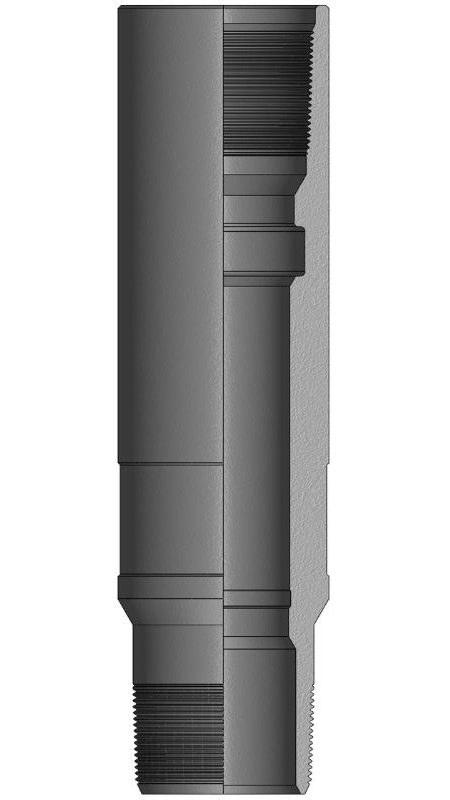

BRORN Non-Selective Landing Nipple (ORN-Type) (Bottom No-Go)
Model “BRORN” Nipple is a bottom No-Go seating nipple designed for use in single nipple installations or as the bottom nipple when placed with a series of “BROR” landing nipples. This is due to the restricted internal dimension (No-Go) machined into the bottom of the landing nipple. This restriction has a smaller ID in comparison to the Seal Bore ID.
The Model “BRORN” Profile Nipple can be used in heavy tubing applications, as the blanking plug offers a higher pressure rating than the normal weight tubing blanking plugs.
Applications:
- Land blanking plugs to shut in well or test the production tubing.
- Land velocity type safety valves.
- Land equalizing check valves.
- Land chokes to reduce surface flowing pressures.
- Land instrument hangers such as pressure and temperature recorders.
Features:
- Internal sealing bore for maximum sealing capacities.
- Nipple bore compatible with tubing size and weight to permit flow capacity.
- Designed for standard tubing weight.
- Premium threads available upon request.
- Premium grades of material available upon request.
