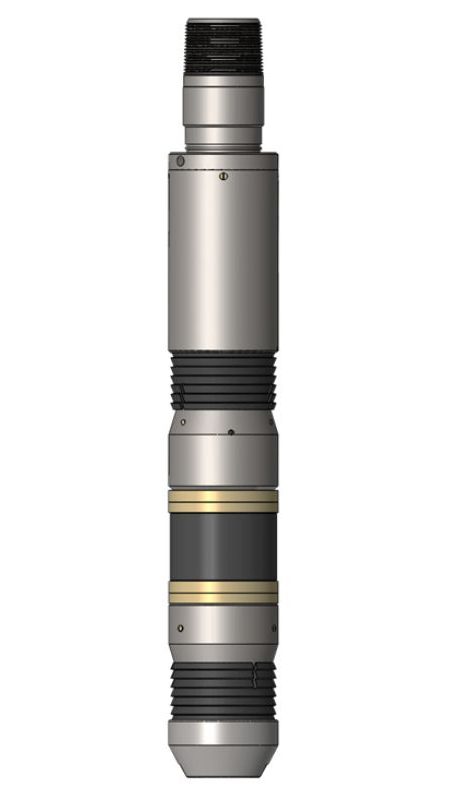

BRHM-2 Bridge plug

BRHM-2 Bridge plug

The BRHM2 is a Permanent Cast Iron Bridge Plug is designed to have excellent running characteristics and secure sets. It can be set hydro-mechanically without the use of special pressure setting tools. The plug is designed for rapid drill-out while maintaining sufficient strength during the set. It is designed for high differential pressures and up to 300° F temperatures with standard element and O-ring.

The short, compact, interlocked construction assures the user that the BRHM2 Plug will provide faster, safer run-in, dependable set and pack-off and hold pressure that is safe for the casing weight and grade. The interlock construction and compact size requires minimal material removal during drill out.

Features
  • Field-proven design.
  • Constructed of drillable materials.
  • Right-hand rotation releases setting tool from plug.
  • Standard packing element rated at 350 ºf.
  • One-piece slips.
Kategori:

Deskripsi

Product Specifications

CASING Bridge Plug
O.D. (Inch) WEIGHT (LB/FT) MIN. I.D. (Inch) MAX. I.D. (Inch) MAX. O.D. (Inch) Part Number
3.500” 5.75-10.3 2.867 3.258 2.750 BRHM2-350
4.000” 5.60-14.0 3.340 3.732 3.190 BRHM2-400
4.500” 9.5-15.1 3.826 4.090 3.562 BRHM2-450
5.000” 11.5-20.8 4.154 4.560 3.937 BRHM2-500
5.500” 13.0-23.0 4.670 5.044 4.312 BRHM2-550
5.750” 14.0-25.2 4.890 5.290 4.699 BRHM2-575
6.625” 17.0-32.0 5.675 6.135 5.375 BRHM2-660
7.000” 17.0-35.0 6.000 6.538 5.687 BRHM2-700
7.625” 20.0-39.0 6.625 7.125 6.312 BRHM2-760
8.625” 24.0-49.0 7.511 8.097 7.125 BRHM2-860
9.625” 29.3-58.4 8.435 9.063 8.175 BRHM2-960
10.750” 32.7-60.7 9.660 10.192 9.437 BRHM2-1075
11.750” 38.0-60.0 10.772 11.150 10.437 BRHM2-1175
13.375” 48.0-84.5 12.175 12.175 11.880 BRHM2-1330
16.000” 65.0 – 118.0 14.576 15.444 14.125 BRHM2-1600
