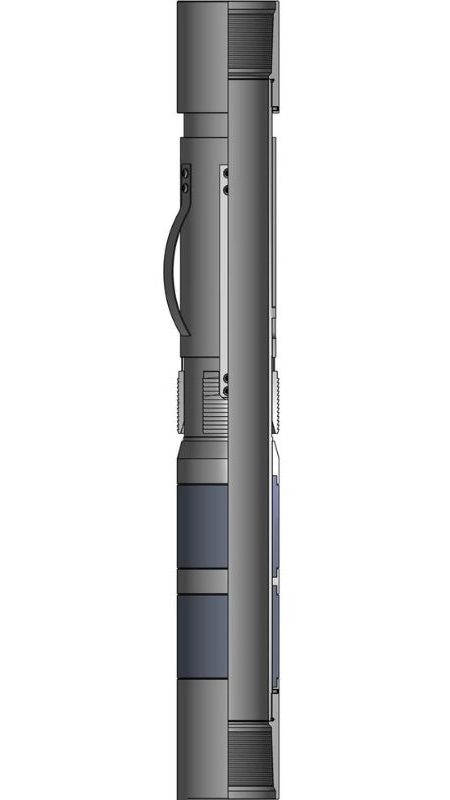

BRCS Mechanical Set Casing Packer

BRCS Mechanical Set Casing Packer

The BRCS Casing Packer is a large bore, single grip packer used to isolate damaged casing and for production or injection. This packer can be run in tension or compression and can be used as a liner hanger when equipped with a right-hand release sub. Coarse, deep wickered slips allow this packer to set in open-hole or scaly casing. For open-hole set, this packer can be equipped with two elongated packing elements to assure a positive seal.

Features:
  • Set/run in tension or compression.
  • Applicable for set in open hole.
  • Can be used as a liner hanger.
  • Full opening.
  • Coarse, deep wickered slip teeth.
  • Available with right-hand or left-hand set, manual or automatic release.
Kategori:

Deskripsi

Product Specifications

CASING PACKER
Size (in.) Weight (lbs/ft) Recommended Hole Size (in.) Gage O.D. (in.) MIN. I.D. (in.) Thread Connections Part Number
4-1/2 9.5 – 13.5 3.920 – 4.090 3.750 2.500 2-7/8 EUE BRCS-450270A
4-1/2 13.5 – 15.1 3.826 – 3.920 3.656 2.500 2-7/8 EUE BRCS-450270B
5.00 11.5 – 20.3 4.184 – 4.560 4.000 2.500 2-7/8 EUE BRCS-500270A
5.00 18.0 – 21.4 4.126 – 4.276 3.875 2.500 2-7/8 EUE BRCS-500270B
5-1/2 13.0 – 20.0 4.778 – 5.044 4.625 3.500 4″ NUE BRCS-550400
5-1/2 13.0 – 20.0 4.778 – 5.044 4.625 3.000 3-1/2 EUE BRCS-550350
7.00 17.0 – 38.0 5.920 – 6.538 5.750 4.750 5-1/2 LTC BRCS-700550
7.00 17.0 – 38.0 5.920 – 6.538 5.750 4.000 4-1/2 LTC BRCS-700450
7-5/8 20.0 – 33.7 6.765 – 7.125 6.500 4.000 4-1/2 LTC BRCS-760450
7-5/8 20.0 – 33.7 6.765 – 7.125 6.500 5.000 5-1/2 LTC BRCS-450550
8-5/8 24.0 – 40.0 7.725 – 8.097 7.625 6.000 6-5/8 LTC BRCS-860660
8-5/8 24.0 – 40.0 7.725 – 8.097 7.625 6.500 7″ LTC BRCS-860700
8-5/8 24.0 – 40.0 7.725 – 8.097 7.500 4.150 4-1/2 LTC BRCS-860450
8-5/8 24.0 – 40.0 7.725 – 8.097 7.500 5.000 5-1/2 LTC BRCS-860550
9-5/8 32.3 – 43.5 8.755 – 9.001 8.500 6.500 7″ LTC BRCS-960700A
9-5/8 43.5 – 53.5 8.535 – 8.755 8.250 6.500 7″ LTC BRCS-960700B
10-3/4 32.75 – 55.5 9.760 – 10.192 9.500 6.500 7″ LTC BRCS-1070700
11-3/4 42.0 – 65.0 10.682 – 11.084 10.500 8.000 8-5/8 LTC BRCS-1170860
13-3/8 48.0 – 77.0 12.275 – 12.715 12.000 8.750 9-5/8 LTC BRCS-1330960
18-5/8 87.5 – 117.5 17.439 – 17.755 17.000 12.500 13-3/8 STC BRCS-18601330
