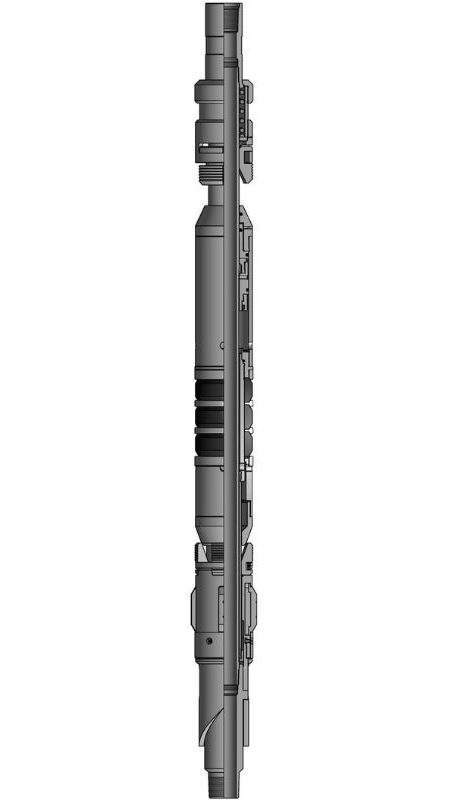

Large-opening, compression-set packer is BRAS-II Packers. This packer uses upper and lower mechanical slips together with a three-element packing system to handle high pressure from both the directions. Simple mechanisam of a drag block system and a J-slot are included. To enhance retrievability, this packer features an integrated unloader that moves over the mechanical hold-down slides. When pressure is higher than the set packer, the unloader’s pressure compensating piston keeps it closed.

The right-hand auto set with straight pick-up release J-slot configuration is the norm for the BRAS-II Packer. Further J-slot configurations are available upon request as of left-hand auto set, left-hand manual set, and right-hand manual set. Straight pick-up release arrangements are applied to all J-slot configurations.

Features:
  • Large internal by-pass.
  • Mechanical slips with carbide buttons.
  • Differential pressure from above and below with holds valve closed.
  • Additional J-slot arrangements available.
Kategori:

Deskripsi

Product Specifications

CASING PACKER
Size (in.) Weight (lbs/ft) Recommended Hole Size (in.) Gage O.D. (in.) MIN. I.D. (in.) Thread Connections Part Number
4-1/2″ 9.5 – 13.5 3.920 – 4.090 3.750 1.940 2-3/8 EUE BRAS-II-450230A
4-1/2″ 15.1 3.826 3.656 1.940 2-3/8 EUE BRAS-II-450230B
5″ 11.5 – 18.0 4.276 – 4.560 4.125 1.940 2-3/8 EUE BRAS-II-500230A
5″ 18.0 – 21.4 4.126 – 4.276 4.000 1.940 2-3/8 EUE BRAS-II-500230B
5-1/2″ 14.0 – 20.0 4.778 – 5.012 4.625 2.000 2-3/8 EUE BRAS-II-550230A
5-1/2″ 14.0 – 20.0 4.778 – 5.012 4.625 2.380 2-7/8 EUE BRAS-II-550270A
5-1/2″ 20.0 – 23.0 4.670 – 4.778 4.500 2.000 2-3/8 EUE BRAS-II-550230B
5-1/2″ 20.0 – 23.0 4.670 – 4.778 4.500 2.380 2-7/8 EUE BRAS-II-550270B
7″ 17.0 – 26.0 6.276 – 6.538 6.000 2.500 2-7/8 EUE BRAS-II-700270A
7″ 26.0 – 32.0 6.094 – 6.276 5.875 2.500 2-7/8 EUE BRAS-II-700270B
7″ 26.0 – 32.0 6.094 – 6.276 5.875 3.000 3-1/2 EUE BRAS-II-700350B
7″ 29.0 – 35.0 6.004 – 6.184 5.812 2.500 2-7/8 EUE BRAS-II-700270C
7-5/8″ 33.7 – 39.0 6.625 – 6.765 6.453 3.000 3-1/2 EUE BRAS-II-760350A
9-5/8″ 32.3 – 43.5 8.755 – 9.001 8.500 3.000 3-1/2 EUE BRAS-II-960350A
9-5/8″ 32.3 – 43.5 8.755 – 9.001 8.500 4.000 4-1/2 EUE BRAS-II-960450A
9-5/8″ 43.5 – 53.5 8.535 – 8.755 8.250 3.000 3-1/2 EUE BRAS-II-960350B
9-5/8″ 43.5 – 53.5 8.535 – 8.755 8.250 4.000 4-1/2 EUE BRAS-II-960450B
13-3/8″ 54.5 – 77.0 12.275 – 12.615 12.000 4.000 4-1/2 EUE BRAS-II-1330450A
