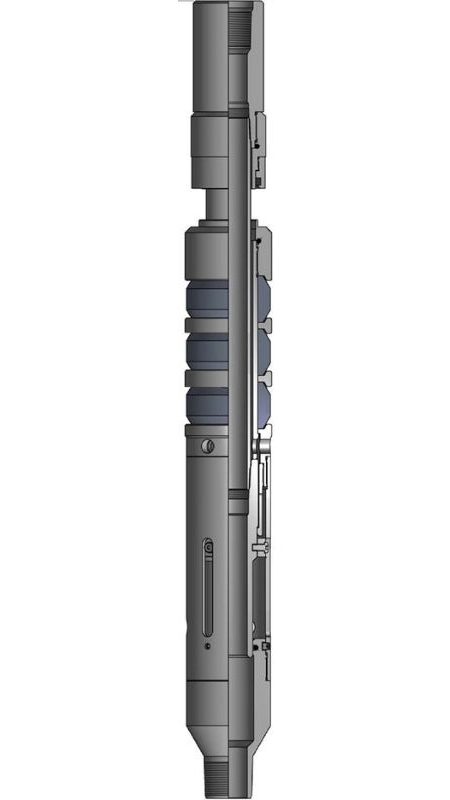

BR-SS-I Packer (SNAPSET-I)

BR-SS-I Packer (SNAPSET-I)

The BR-SS-I is a compression set production packer that is run above another retrievable packer or permanent seal bore packer to isolate a zone between the tools for treating, injecting, producing or to isolate casing holes or perforations. Simple design and straight pick up release makes the BR-SI an ideal cost effective packer for isolating zones in low pressure applications.

Coatings can be applied for corrosion resistance in waterflood applications. Internal bypass allows pressure equalization before the slips are unset, providing safety and reliability.

Features:
  • Simple Design.
  • Collet Style snap latch eliminating need to rotate to set.
  • Internal bypass.
  • Keyed for rotation if required to set packer below.
Kategori:

Deskripsi

CASING PACKER
Size (in.) Weight (lbs/ft) MIN. I.D. (in.) MAX. I.D. (in.) Gage O.D. (in.) MIN. I.D. (in.) Thread Connections Part Number
2.875” 6.4-6.5 2.275 2.469 2.250 0.750 1.090 EU 10 RD BR-SS1-270109
3.000” 7.7-10.2 2.992 3.068 2.781 0.750 1.090 EU 10 RD BR-SS1-300109
4.000” 9.5-11.0 3.476 3.548 3.250 1.625 2-3/8” EU 8RD BR-SS1-400230
4.500” 15.1-16.6 3.754 3.826 3.594 1.938  2-3/8” EU 8RD BR-SSI-450230B
4.500” 9.5-13.5 3.920 4.090 3.750 1.938  2-3/8” EU 8RD BR-SSI-450230A
5.000” 11.5-15.0 4.408 4.560 4.125 1.938 2-3/8” EU 8RD BR-SSI-500230
5.500” 20.0 – 23.0 4.670 4.778 4.500 1.969 2-3/8″ EU 8 RD BR-SSI-550230B
5.500” 14.0 – 20.0 4.778 5.044 4.625 1.969 2-3/8″ EU 8 RD BR-SSI-550230A
5.500” 20.0 – 23.0 4.670 4.778 4.500 2.375 2-7/8″ EU 8 RD BR-SSI-550270B
5.500” 14.0 – 20.0 4.778 5.044 4.625 2.375 2-7/8″ EU 8 RD BR-SSI-550270A
7.000” 26.0-32.0 6.094 6.276 5.875 2.500 2-7/8″ EU 8 RD BR-SSI-700270B
7.000” 17.0-26.0 6.276 6.538 6.000 2.500 2-7/8″ EU 8 RD BR-SSI-700270A
7.625” 24.0 – 29.7 6.875 7.025 6.675 2.500 2-7/8″ EU 8 RD BR-SSI-760270A
8.625” 24.0-40.0 7.725 8.097 7.500 3.000 3-1/2” EU 8 RD BR-SSI-860350
9.625” 43.5-53.5 8.535 8.755 8.250 3.000 3-1/2” EU 8 RD BR-SSI-960350B
9.625” 32.3-43.5 8.755 9.001 8.500 3.000 3-1/2” EU 8 RD BR-SSI-960350A
10.750” 32.7 – 55.5 9.760 10.192 9.500 4.000 4-1/2” EU 8 RD BR-SSI-1075450
11.750” 42.0 – 60.0 10.772 11.084 10.500 4.000 4-1/2” EU 8 RD BR-SSI-1175450
13.375” 48.0 – 77.0 12.275 12.715 12.000 4.000 4-1/2” EU 8 RD BR-SSI-1330450
