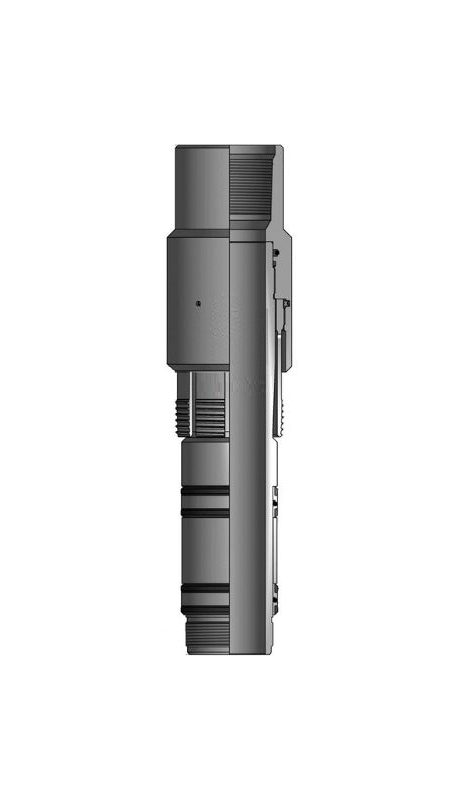

BR-SLA Snap Latch Assembly

BR-SLA Snap Latch Assembly

The BR-SLA Snap Latch Seal Assembly latches into the sealbore packer upon set down (like our Anchor Latch Seal Assembly). It can be removed with straight pull of 10,000 to 12,000 lbs. above tubing weight. The BR-SLA Snap Latch Seal Assembly is used where a mechanical indication is required to verify the seal assembly is properly positioned in the sealbore packer.

Kategori:

Deskripsi

Product Specification

Packer Bore (inches) Tool OD (inches) Tool ID (inches) Thread Connections (Box Up / Pin Down) Part Number
1.750 2.500 1.125 1.900 NUE BR-SLA-1750
2.500 3.500 1.938 2-3/8 EUE & STUB ACME BR-SLA-2500
2.688 3.625 1.938 2-3/8 EUE & STUB ACME BR-SLA-2688
3.000 4.000 2.375 2-7/8 EUE & STUB ACME BR-SLA-3000
3.250 4.750 2.375 2-7/8 EUE & STUB ACME BR-SLA-3250
4.000 5.188 3.000 3-1/2 EUE & STUB ACME BR-SLA-4000
4.750 6.062 3.500 3-1/2 EUE & STUB ACME BR-SLA-4750
5.000 5.825 4.000 4-1/2 EUE & STUB ACME BR-SLA-5000
6.000 7.500 4.750 5-1/2 LTC & STUB ACME BR-SLA-6000
7.000 8.060 5.875 6-5/8 LTC & STUB ACME BR-SLA-7000
