BR-HTS Hydro Trip Sub

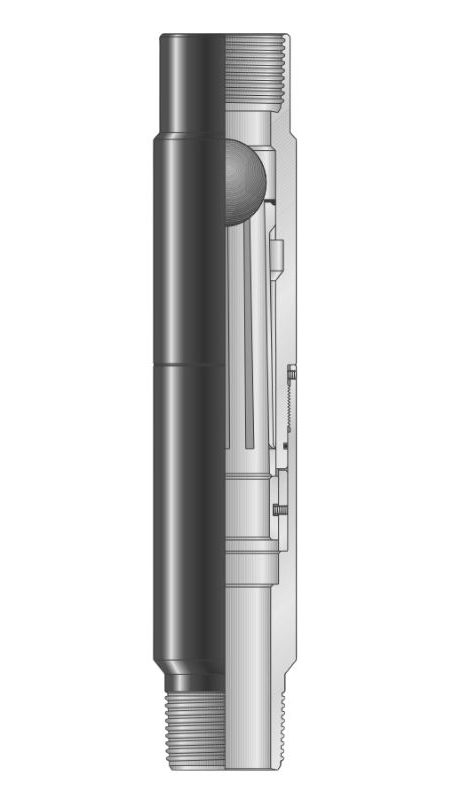

The BR-HTS Hydro-Trip Sub is used below a hydraulically actuated tool, such as a hydraulic-set packer, to provide a means of applying the required tubing pressure for tool activation. The unique sub uses a ball that seals on the seat. After the packer is set, increased pressure forces the ball seat down until the fingers snap back into a groove. This fully opens the sub and the ball passes on down the tubing. The E is available for use with 1.900 to 4.500-in. (48.3-mm to 114.3-mm) size tubing strings.
