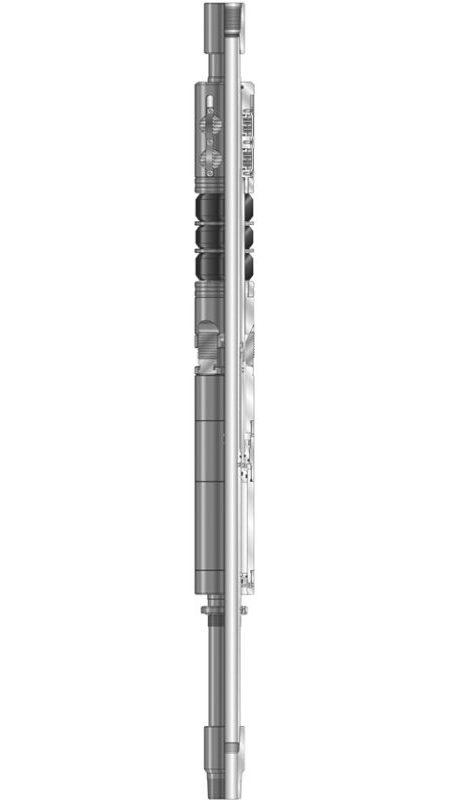

BR-FH Packer

BR-FH Packer

The BR-FH is a hydrostatic and/or hydraulic set packer that allows the tubing to be left in a compression or neutral condition. Used in multi-zone production where crooked or deviated holes are not suitable for mechanical packers. An installation where the wellhead is flanged up before the packer is set.

Available in regular API upset and non upset connections as well as premium threading options.

Features
  • No tubing manipulation required.
  • Withstand high hydrostatic pressures.
  • Hydraulic set for low hydrostatic head wells.
  • Locked in pack off force.
  • Hydraulic hold down for differential pressure from below.
Kategori:

Deskripsi

Product Specification

CASING PACKER
O.D. (Inch) Weight
(lbs/ft)		 MIN. I.D. (Inch) MAX. I.D. (Inch) MAX. O.D. (Inch) MIN. I.D. (Inch) STANDARD THREAD CONNECTION Part Number
4.500” 13.5 – 15.1 3.826 3.92 3.688 1.875 2-3/8″ EU 8 RD BR-FH-450B
4.500” 9.5 – 13.5 3.92 4.09 3.75 1.875 2-3/8″ EU 8 RD BR-FH-450A
5.000” 18.0 – 20.8 4.156 4.276 4.125 1.875 2-3/8″ EU 8 RD BR-FH-500B
5.000” 11.5 – 15.0 4.408 4.56 4.25 1.875 2-3/8″ EU 8 RD BR-FH-500A
5.500” 20.0 – 23.0 4.67 4.778 4.5 1.969 2-3/8″ EU 8 RD BR-FH-550C
5.500” 15.5-20.0 4.778 4.95 4.625 1.969 2-3/8″ EU 8 RD BR-FH-550B
5.500” 13.0-15.5 4.95 5.044 4.75 1.969 2-3/8″ EU 8 RD BR-FH-550A
5.750” 18.6-25.0 4.882 5.118 4.625 1.969 2-3/8″ EU 8 RD BR-FH-575B
5.750” 14.0-17.0 5.19 5.29 4.875 1.969 2-3/8″ EU 8 RD BR-FH575A
6.625” 28.0-32.0 5.675 5.791 5.5 2.5 2-7/8″ EU 8 RD BR-FH-660C
6.625” 24.0-28.0 5.791 5.921 5.625 2.5 2-7/8″ EU 8 RD BR-FH-660B
6.625” 17.0-24.0 5.921 6.135 5.75 2.5 2-7/8″ EU 8 RD BR-FH-660A
7.000” 32.0-35.0 6.004 6.094 5.813 2.5 2-7/8″ EU 8 RD BR-FH-700E
7.000” 26.0-32.0 6.094 6.276 5.968 2.5 2-7/8″ EU 8 RD BR-FH-700D
7.000” 23.0-29.0 6.184 6.366 6 2.5 2-7/8″ EU 8 RD BR-FH-700C
7.000” 20.0-26.0 6.276 6.456 6.078 2.5 2-7/8″ EU 8 RD BR-FH-700B
7.000” 17.0-20.0 6.456 6.538 6.25 2.5 2-7/8″ EU 8 RD BR-FH-700A
9.625” 43.5-53.5 8.535 8.755 8.25 3 3-1/2″ EU 8 RD BR-FH-960B
9.625” 32.3-43.5 8.755 9.001 8.5 3 3-1/2″ EU 8 RD BR-FH-960A
