BR-G Cup Packer

BR-G Cup Packer

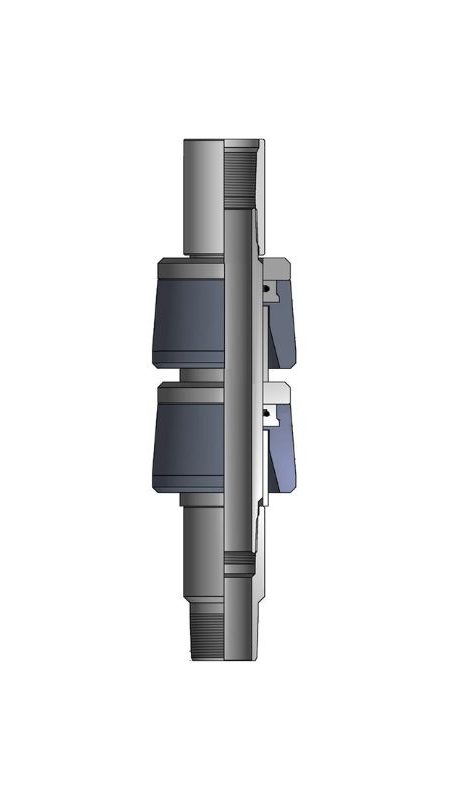

The BR-G Cup Packer is a low-cost way to isolate depletion zones and casing leaks. It may also be used as an injection or production packer for low pressure applications. This packer may be run with cups pointing in the same or opposite directions, depending on the application. For greater pressure applications, this packer is also offered with packing element backup rings. It is available in two-cup or four-cup configurations with a wide variety of tubing and casing diameters.

Features:
  • Economic design.
  • Cup direction option.
  • Tubing size options.
Kategori:

Deskripsi

Product Specifications

CASING PACKER
Size (in.) Weight (lbs/ft) Recommended Hole Size (in.) Gage O.D. (in.) MIN. I.D. (in.) Thread Connections Part Number
3-1/2 9.2 – 10.3 2.922 – 2.992 2.810 1.500 1.900 NUE BR-G-350190
4-1/2 9.5 – 13.5 3.920 – 4.090 3.750 2.000 2-3/8 EUE BR-G-450230
4-1/2 9.5 – 13.5 3.920 – 4.090 3.750 2.500 2-7/8 EUE BR-G-450270
5.000 13.0 – 15.0 4.408 – 4.494 4.250 2.000 2-3/8 EUE BR-G-500230A
5.000 15.0 – 18.0 4.276 – 4.408 4.125 2.000 2-3/8 EUE BR-G-500230B
5.000 13.0 – 15.0 4.408 – 4.494 4.250 2.375 2-7/8 EUE BR-G-500270A
5.000 15.0 – 18.0 4.276 – 4.408 4.125 2.375 2-7/8 EUE BR-G-500270B
5-1/2 20.0 – 23.0 4.670 – 4.788 4.500 2.000 2-3/8 EUE BR-G-550230B
5-1/2 14.0 – 20.0 4.778 – 5.012 4.625 2.000 2-3/8 EUE BR-G-550230A
5-1/2 20.0 – 23.0 4.670 – 4.788 4.500 2.375 2-7/8 EUE BR-G-550270B
5-1/2 14.0 – 20.0 4.778 – 5.012 4.625 2.375 2-7/8 EUE BR-G-550270A
6-5/8 24.0 – 32.0 5.675 – 5.921 5.500 2.500 2-7/8 EUE BR-G-660270B
6-5/8 20.0 – 24.0 5.921 – 6.049 5.750 2.500 2-7/8 EUE BR-G-660270A
6-5/8 24.0 – 32.0 5.675 – 5.921 5.500 3.000 3-1/2 EUE BR-G-660350B
6-5/8 20.0 – 24.0 5.921 – 6.049 5.750 3.000 3-1/2 EUE BR-G-660350A
7.000 20.0 – 29.0 6.184 – 6.456 6.000 2.500 2-7/8 EUE BR-G-700270B
7.000 17.0 – 23.0 6.366 – 6.538 6.125 2.500 2-7/8 EUE BR-G-700270A
7.000 20.0 – 29.0 6.184 – 6.456 6.000 3.000 3-1/2 EUE BR-G-700350B
7.000 17.0 – 23.0 6.366 – 6.538 6.125 3.000 3-1/2 EUE BR-G-700350A
9-5/8 40.0 – 47.0 8.681 – 8.835 8.500 4.000 4-1/2 EUE BR-G-960450
