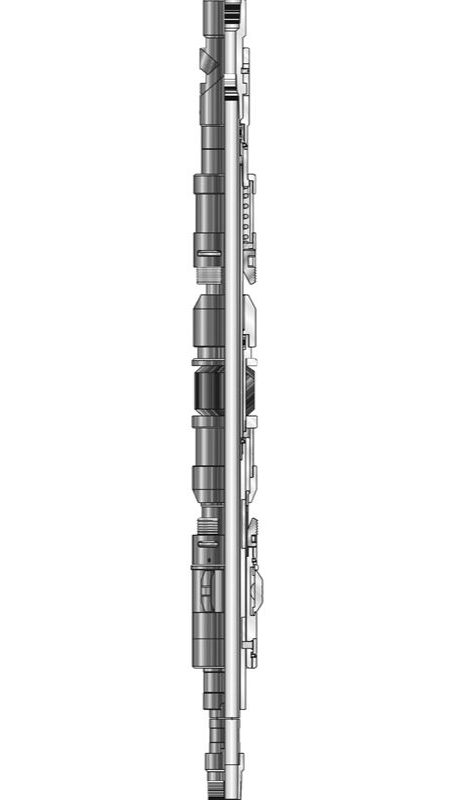

BR-D1 Packer

BR-D1 Packer

The BR-D1 is a tension set, Single Grip, retrievable production packer. It is compact in design, in expensive and can be utilized for most low pressure production, water injection and pressure work applications. It incorporates with three release method to insure retrievability

Features:
  • Compact design.
  • Rocker type slips.
  • Right hand safety joint emergency release.
  • One piece field proven element.
  • J-slot control for normal set and release.
Kategori:

Deskripsi

Product Specifications

CASING PACKER
O.D. (in.) Weight (lbs/ft) MIN. I.D. (in.) MAX. I.D. (in.) Gage O.D. (in.) MIN. I.D. (in.) Thread Connections Part Number
4.000″ 9.5-11.6 3.428 3.548 3.281 1.750 2-3/8″ EU 8RD BR-D1-400230
4.500″ 15.1-16.6 3.754 3.826 3.594 1.875  2-3/8″ EU 8RD BR-D1-450230B
4.500″ 9.5-13.5 3.920 4.090 3.750 1.875  2-3/8″ EU 8RD BR-D1-450230A
5.000″ 18.0-21.0 4.154 4.276 4.000 1.875 2-3/8″ EU 8R BR-D1-500230C
5.000″ 15.0-18.0 4.276 4.408 4.125 1.875 2-3/8″ EU 8R BR-D1-500230B
5.000″ 11.5-15.0 4.408 4.560 4.250 1.875 2-3/8″ EU 8R BR-D1-500230A
5.500″ 20.0 – 23.0 4.670 4.778 4.500 1.969 2-3/8″ EU 8 RD BR-D1-550230B
5.500″ 14.0 – 20.0 4.778 5.044 4.625 1.969 2-3/8″ EU 8 RD BR-D1-550230A
5.750″ 22.5 4.950 5.190 4.781 1.969 2-3/8″ EU 8 RD BR-D1-575230
6.625″ 24 5.921 5.921 5.656 2.500 2-7/8″ EU 8 RD BR-D1-660700B
6.625″ 17-20 6.049 6.135 5.813 2.500 2-7/8″ EU 8 RD BR-D1-660700A
7.000″ 32.0-38.0 5.920 6.094 5.688 2.500 2-7/8″ EU 8 RD BR-D1-700270D
7.000″ 26.0-32.0 6.094 6.276 5.938 2.500 2-7/8″ EU 8 RD BR-D1-700270C
7.000″ 20.0-26.0 6.276 6.456 6.078 2.500 2-7/8″ EU 8 RD BR-D1-700270B
7.000″ 17.0-20.0 6.456 6.538 6.266 2.500 2-7/8″ EU 8 RD BR-D1-700270A
7.000″ 32.0-38.0 5.920 6.094 5.688 3.000 3-1/2″ EU 8 RD BR-D1-700350D
7.000″ 26.0-32.0 6.094 6.276 5.938 3.000 3-1/2″ EU 8 RD BR-D1-700350C
7.000″ 20.0-26.0 6.276 6.456 6.078 3.000 3-1/2″ EU 8 RD BR-D1-700350B
7.000″ 17.0-20.0 6.456 6.538 6.266 3.000 3-1/2″ EU 8 RD BR-D1-700350A
7.625″ 33.7-39.0 6.625 6.765 6.453 3.000 3-1/2″ EU 8 RD BR-D1-760350C
7.625″ 24.0 – 29.7 6.875 7.025 6.675 3.000 3-1/2″ EU 8 RD BR-D1-760350B
7.625″ 20.0-24.0 7.025 7.125 6.813 3.000 3-1/2″ EU 8 RD BR-D1-760350A
8.625″ 24.0-40.0 7.725 8.097 7.500 3.000 3-1/2″ EU 8 RD BR-D1-860350
9.625″ 43.5-53.5 8.535 8.755 8.250 3.000 3-1/2″ EU 8 RD BR-D1-960350B
9.625″ 32.3-43.5 8.755 9.001 8.500 3.000 3-1/2″ EU 8 RD BR-D1-960350A
10.750″ 32.7 – 55.5 9.760 10.192 9.500 4.000 4-1/2″ EU 8 RD BR-D1-1075450
11.750″ 42.0 – 60.0 10.772 11.084 10.500 4.000 4-1/2″ EU 8 RD BR-D1-1175450
13.375″ 48.0 – 77.0 12.275 12.715 12.000 4.000 4-1/2″ EU 8 RD BR-D1-1330450
