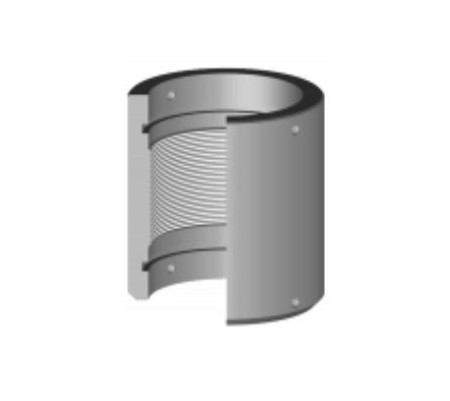

BR-ACHL Anchor Latch Assembly

BR-ACHL Anchor Latch Assembly

The BR-ACHL Anchor Latch Seal Assembly is used when floating seals are not required. This assembly allows the tubing string to be in tension or compression. Upon set down the anchor latches into the packer and can be removed with eight to ten right-hand turns.

Kategori:

Deskripsi

Product Specification

Packer Bore (inches) Tool OD (inches) Tool ID (inches) Thread Connections (Box Up / Pin Down) Part Number
1.750 2.500 1.125 1.900 NUE BR-ACHL-1750
2.500 3.500 1.938 2-3/8 EUE & STUB ACME BR-ACHL-2500
2.688 3.625 1.938 2-3/8 EUE & STUB ACME BR-ACHL-2688
3.000 4.000 2.375 2-7/8 EUE & STUB ACME BR-ACHL-3000
3.250 4.750 2.375 2-7/8 EUE & STUB ACME BR-ACHL-3250
4.000 5.188 3.000 3-1/2 EUE & STUB ACME BR-ACHL-4000
4.750 6.062 3.500 3-1/2 EUE & STUB ACME BR-ACHL-4750
5.000 5.825 4.000 4-1/2 EUE & STUB ACME BR-ACHL-5000
6.000 7.500 4.750 5-1/2 LTC & STUB ACME BR-ACHL-6000
7.000 8.060 5.875 6-5/8 LTC & STUB ACME BR-ACHL-7000
