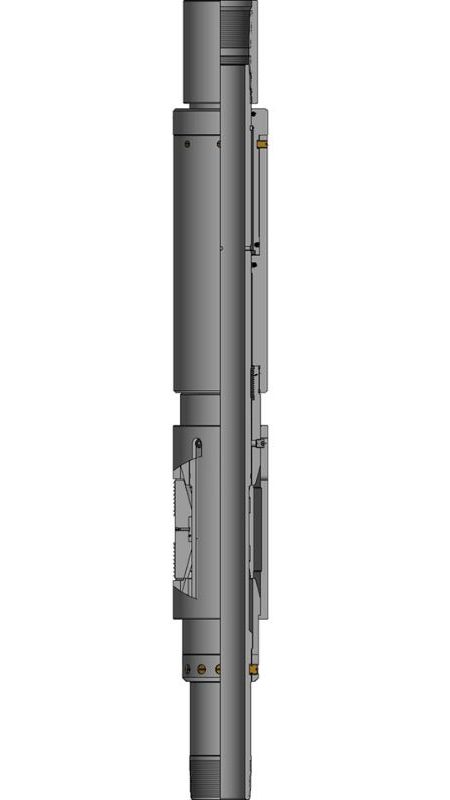

ATLAS-XH Tubing Anchor

ATLAS-XH Tubing Anchor

The ATLAS-XH Tubing Anchor is a retrievable anchor with hydraulic activation that can hold a tubing string in either compression or tension. The ATLAS-XH Tubing Anchor catcher maintains the tubing in place in the event that it should split and stops it from moving during pumping strokes. In the event of a component failure, the installation of a tubing anchor prevents tubing and rods from falling into the well and increases pump efficiency by reducing rod and tubing wear.

Pressuring the tubing is how the ATLAS-XH Tubing Anchor works. The shear screws holding the anchor unset get sheared by this pressure. A setting piston locks the setting force in place and push the slips into set position. The ATLAS-XH Tubing Anchor maximizes holding force in tension or compression by using specially designed heat-treated steel alloy double-acting slips. For enhance breakage resistance, slips are entirely caged and will be kept in the event that they break. Shearing screws under stress are used to recover the ATLAS-XH Tubing Anchor. To obtain the appropriate shear value required for release, shear pins are inserted in increments of about 5,000 pounds.

For more dependable setting and releasing, the Hydraulic Tubing Anchor’s architecture was improved for the ATLAS-XH Tubing Anchor.

Kategori:

Deskripsi

Product Specifications

Size (inches) Weight (lbs/ft) Recommended Hole Size
(inches)		 Tool OD (inches) Tool ID (inches) Thread Connections
(Box Up / Pin Down)		 Part Number
4-1/2 9.5 – 13.5 3.920 – 4.090 3.750 1.940 2-3/8 EUE AT-XHAC-450A
5.00 11.5 – 15.0 4.408 – 4.560 4.125 1.940 2-3/8 EUE AT-XHAC-500A
5.00 18.0 – 21.0 4.154 – 4.276 4.000 1.940 2-3/8 EUE AT-XHAC-500B
5-1/2 13.0 – 23.0 4.670 – 5.044 4.500 2.380 2-7/8 EUE AT-XHAC-550A
6-5/8 24.0 – 32.0 5.675 – 5.921 5.500 2.380 2-7/8 EUE AT-XHAC-660A
6-5/8 24.0 – 32.0 5.675 – 5.921 5.500 3.000 3-1/2 EUE AT-XHAC-660B
7.00 17.0 – 38.0 5.920 – 6.538 5.750 2.500 2-7/8 EUE AT-XHAC-700A
7.00 17.0 – 35.0 5.920 – 6.538 5.750 3.000 3-1/2 EUE AT-XHAC-700B
9-5/8 29.3 – 47.0 9.063 – 8.681 8.500 4.000 4-1/2 EUE AT-XHAC-960A
